MIL-DTL-613D
E
A
B
C
D
+.375/-0.00
Size
in (mm)
in (mm)
in (mm)
in (mm)
in (mm)
1
36 (914 )
11(279)
11(279)
2(51)
3.25(83)
2
30 (762 )
8.5(216)
8.5(216)
2.5(64)
2.5(64)
3
19 (483 )
6(152)
6(152)
1.13(29)
1.88(48)
4
12 (385)
3.5(89)
3.5(89)
1.88(48)
1.13(39)
F
G
H
K
L
Size
in (mm)
in (mm)
in (mm)
in (mm)
in (mm)
1
3.25(83)
2.5(64)
1.63(41)
7(178)
5(127)
2
2.5(64)
1.88(48)
1.25(32)
5.5(140)
3.75(95)
3
1.63(41)
1.25(32)
.88(22)
5.5(140)
2.5(64)
4
1(25)
1.75(44)
.63(16)
2.75(70)
1.75(44)

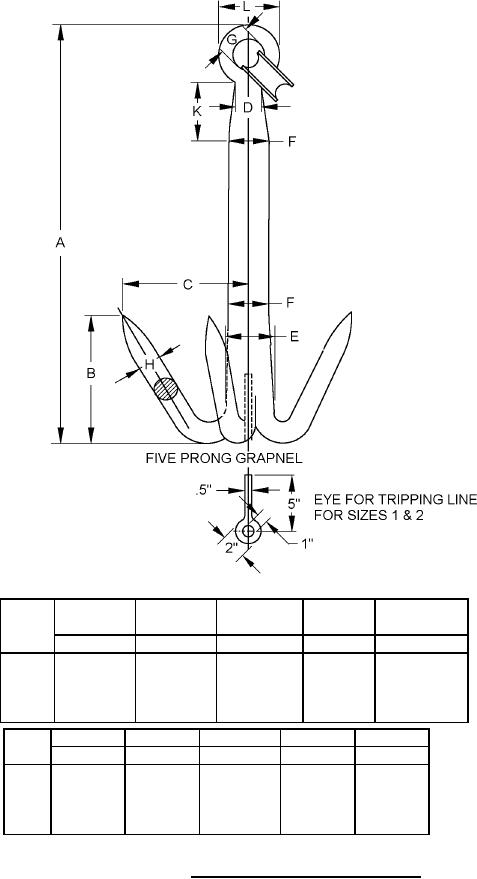

FIGURE 4. Type II, sizes 1,2,3 and 4 grapnels.
